FAA Advisory Circular 43.13-1B

Acceptable Methods, Techniques, and Practices

Aircraft Inspection and Repair

AC 43.13-1B | 4. Metal Structure, Welding, and Brazing | 4. Metal Repair Procedures | 4-58. Repair Methods and Precautions for Aluminum Structure

Previous
Next
9/8/98
AC 43.13-1B
NOTE: FOR MINIMUM NUMBER OF RIVETS REQUIRED, SEE PARAGRAPH 4-58g
AND SUBSEQUENT.

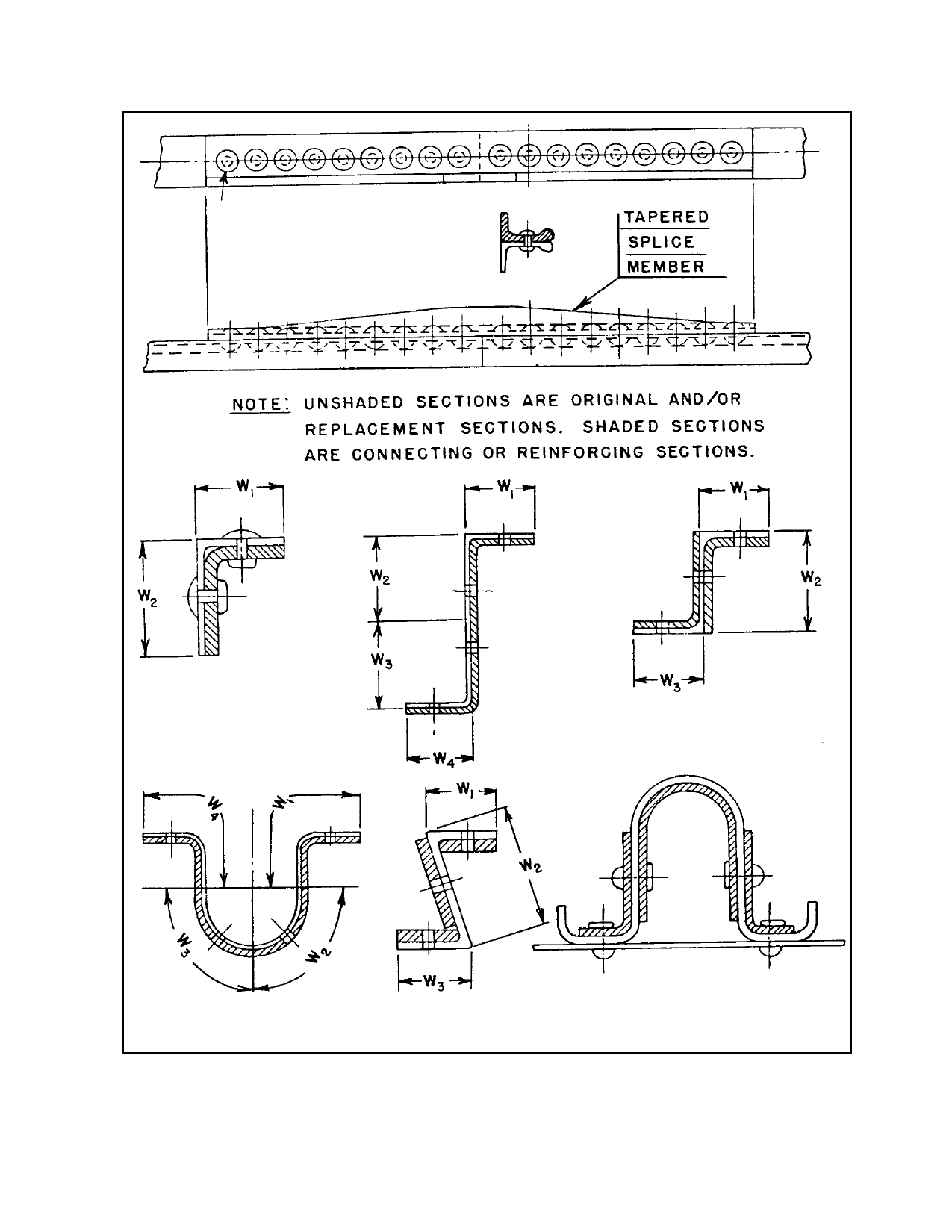

FIGURE 4-17. Typical stringer and flange splices.
Par 4-58
Page 4-33
