AC 43.13-1B
9/8/98

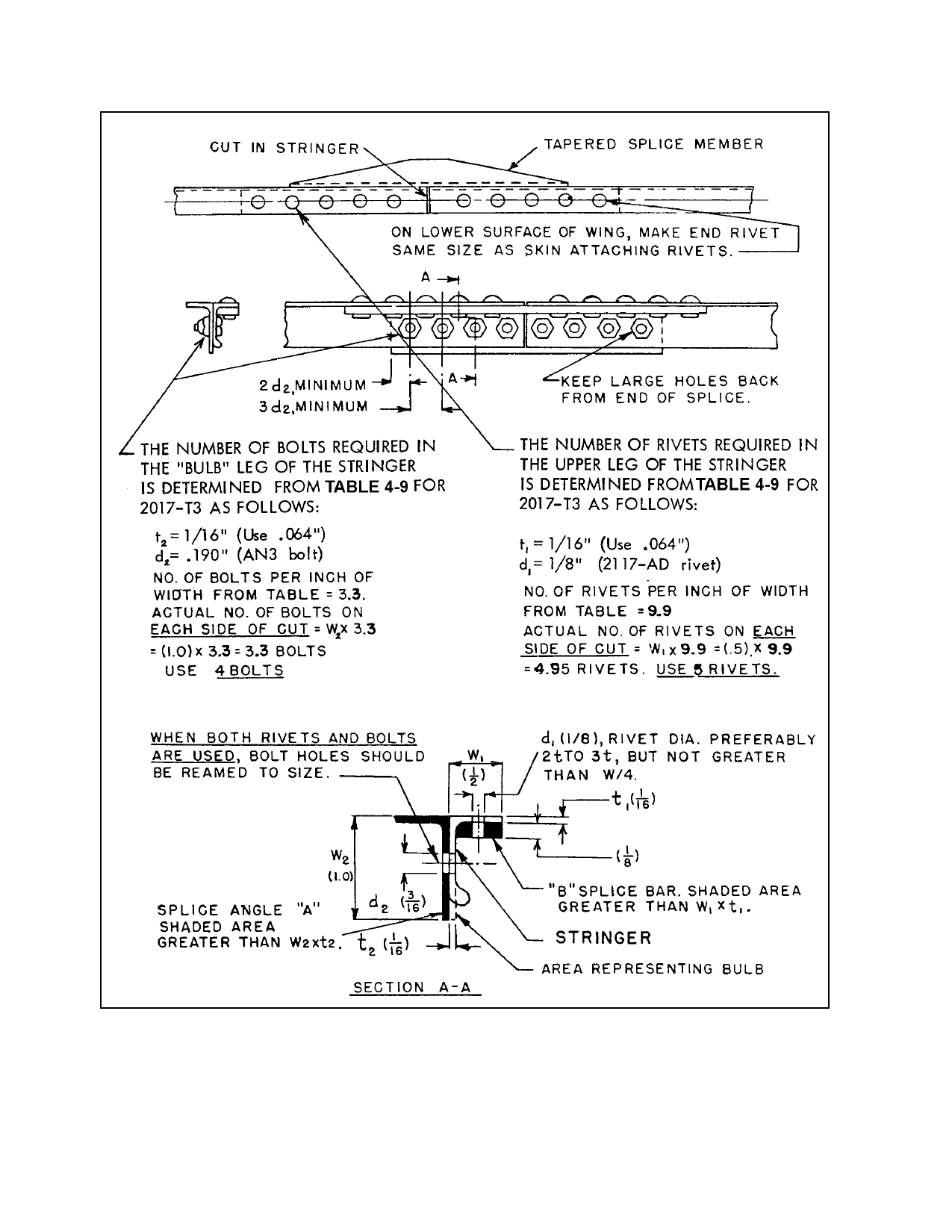

FIGURE 4-18. Example of stringer splice (material-2017 alloy).
Page 4-34
Par 4-58
