AC 43.13-1B
9/8/98

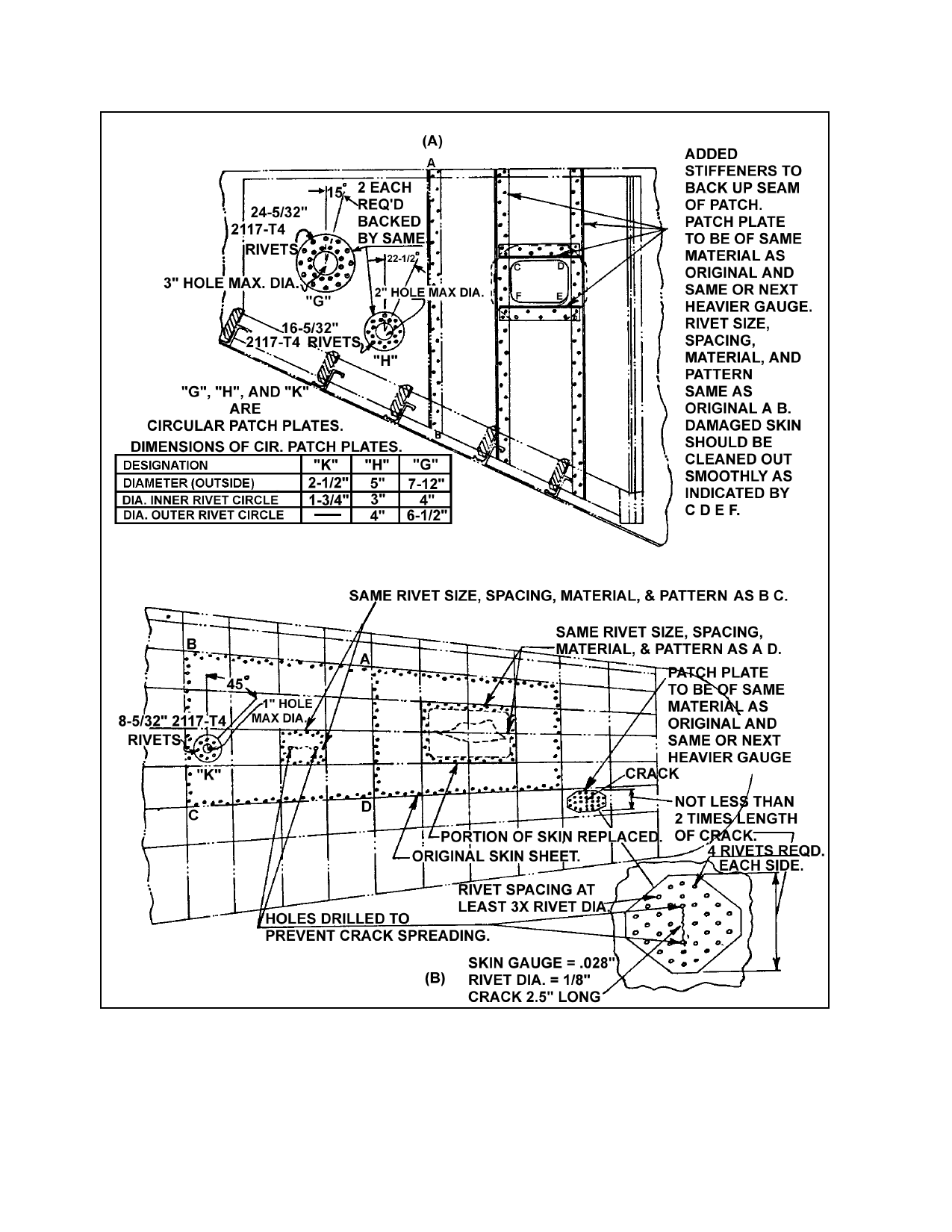

FIGURE 4-16. Typical repairs of stressed sheet metal coverings. (Refer to tables 4-9, 4-10, and 4-11 to calculate
number of rivets to be used.)
Page 4-32
Par 4-58
