9/8/98
AC 43.13-1B
NOTE: FOR MINIMUM NUMBER OF RIVETS REQUIRED, SEE PARAGRAPH 4-58g
AND SUBSEQUENT.

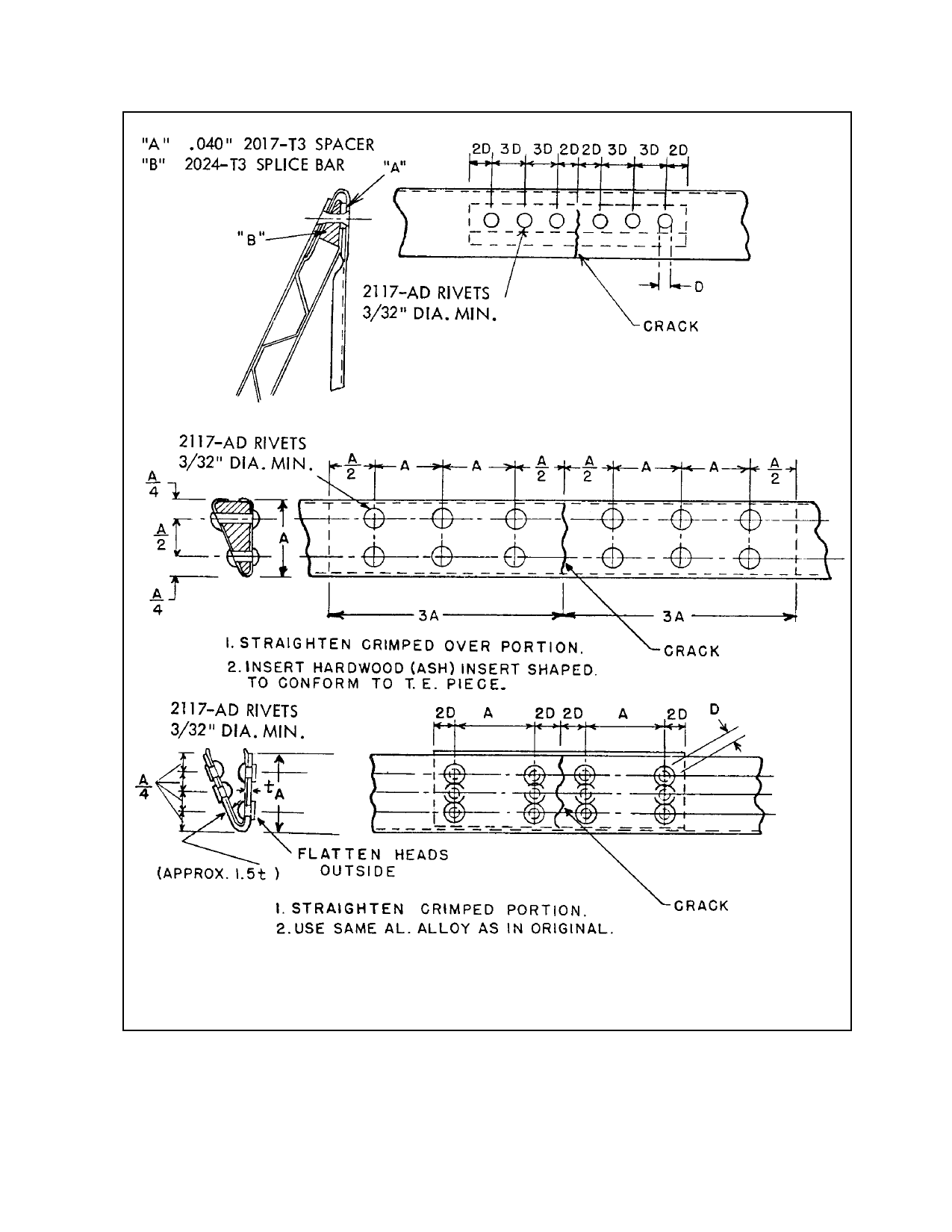

FIGURE 4-15. Typical repairs of trailing edges.
Par 4-58
Page 4-31
