AC 43.13-1B
9/8/98
NOTE: FOR MINIMUM NUMBER OF RIVETS REQUIRED, SEE PARAGRAPH 4-58g
AND SUBSEQUENT.

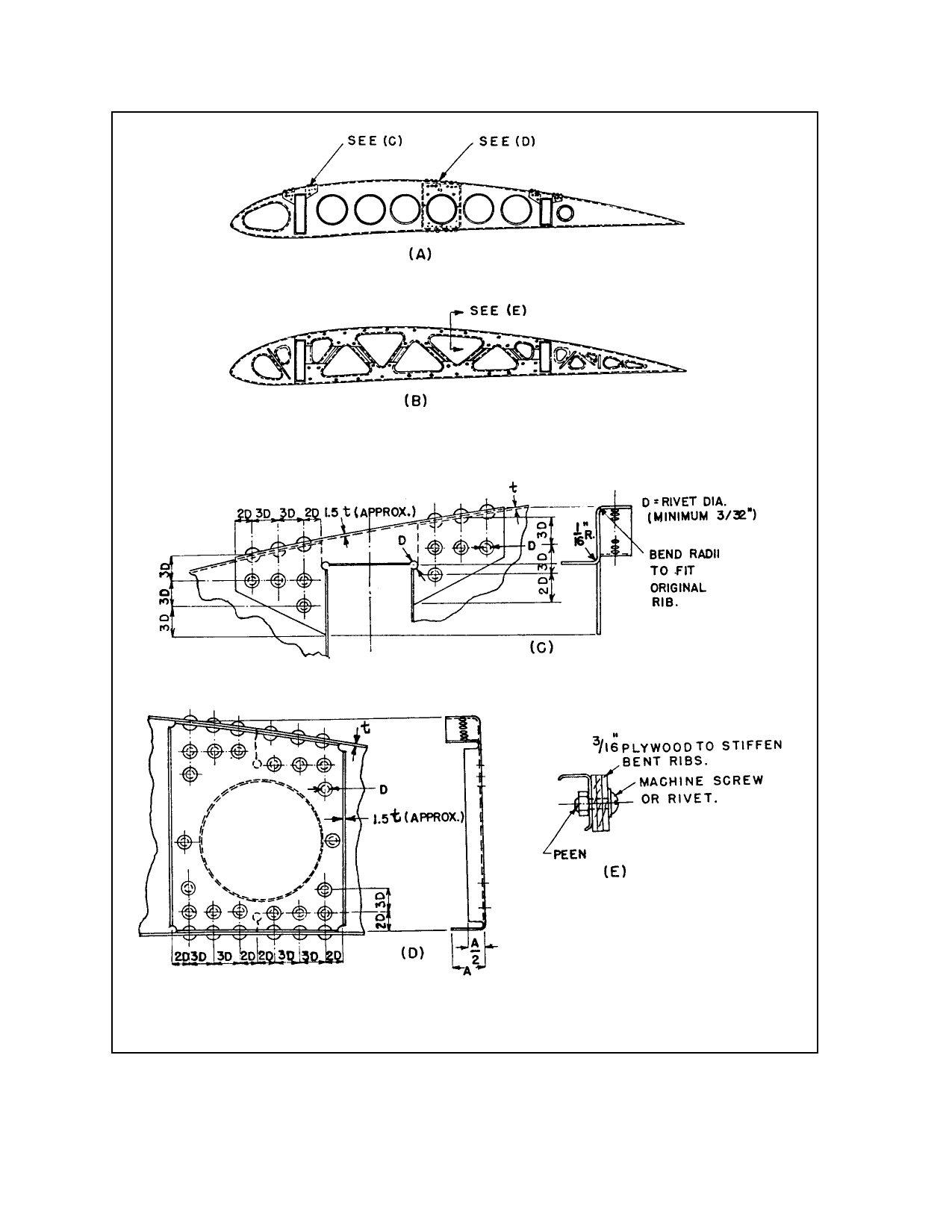

FIGURE 4-14. Typical metal rib repairs (usually found on small and medium-size aircraft).
Page 4-30
Par 4-58
