9/8/98
AC 43.13-1B

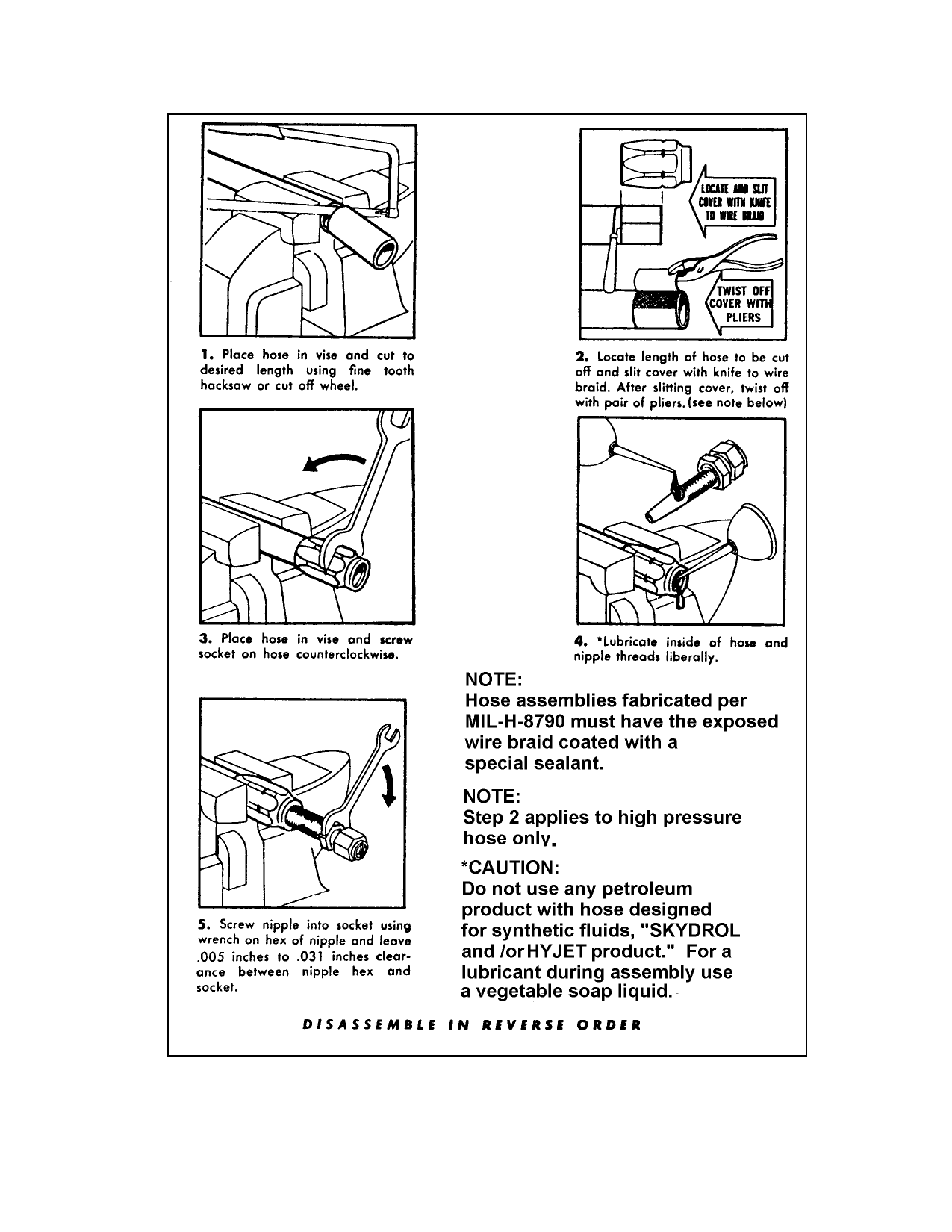

FIGURE 9-8. Hose assembly instructions (can be used for low pressure hydraulic fluid, and oil line
applications).
Par 9-30
Page 9-21
