9/8/98
AC 43.13-1B

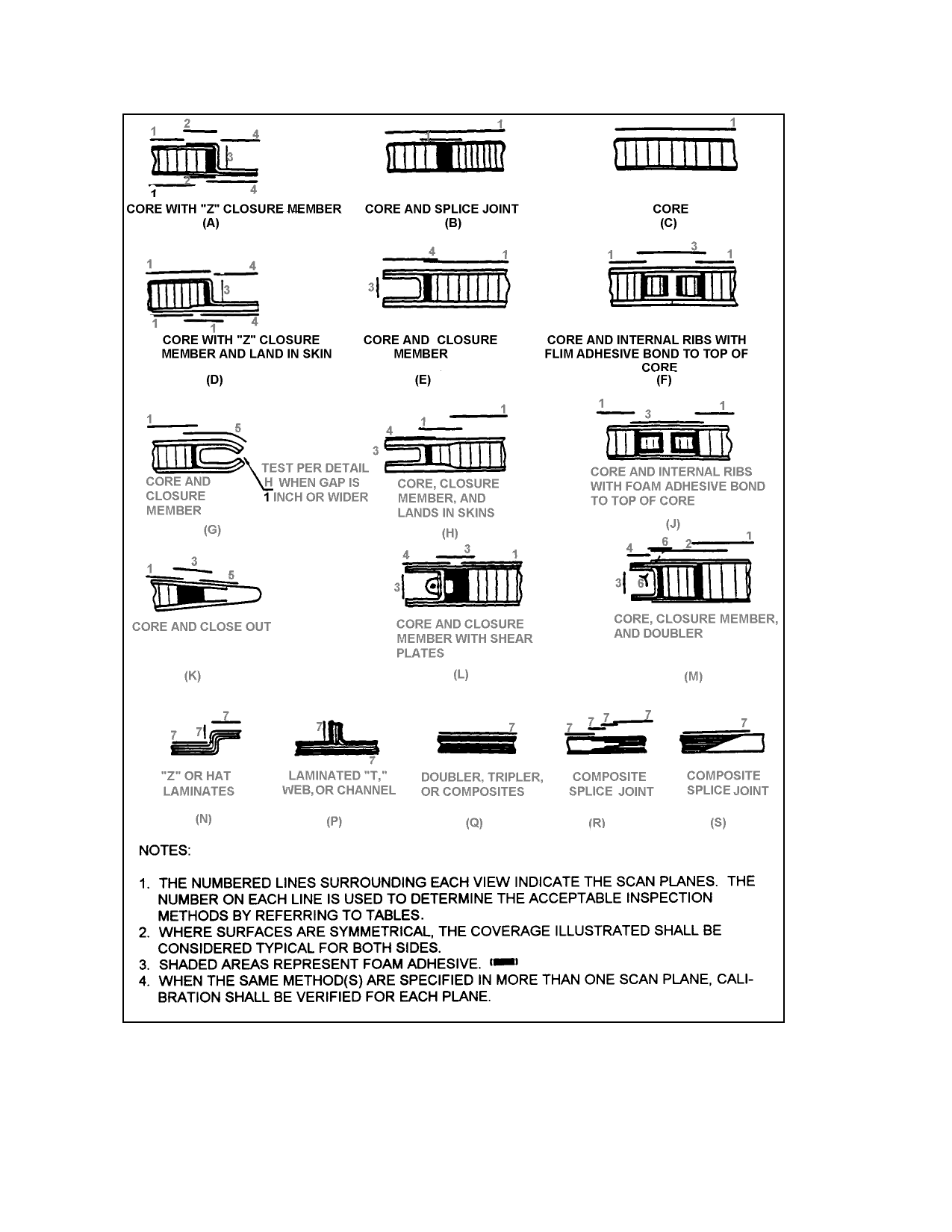

FIGURE 5-21. Examples of bonded structure configurations and suggested inspection coverage.
Par 5-95
Page 5-47
