9/27/01
AC 43.13-1B CHG 1

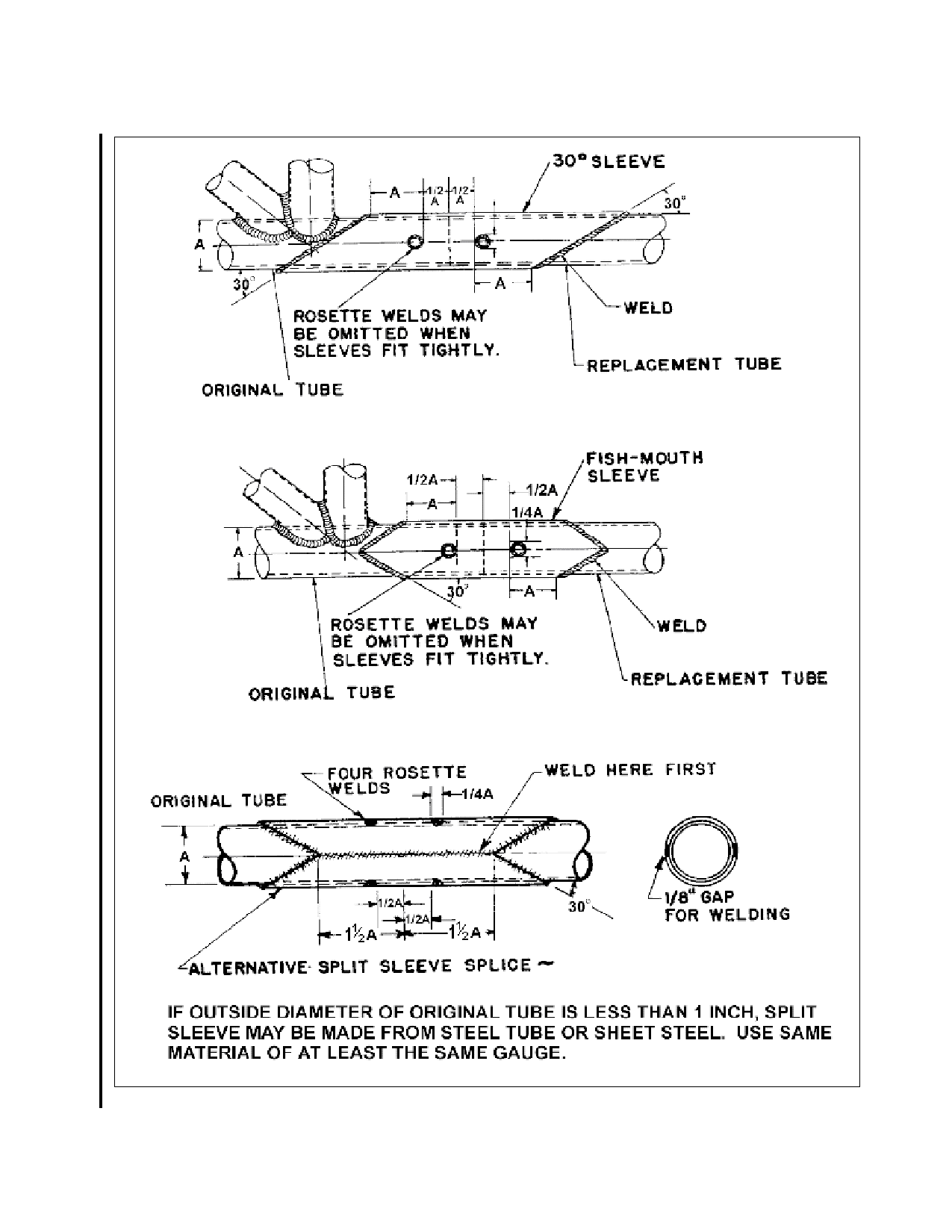

FIGURE 4-38. Splicing by outer-sleeve method (replacement by welded outside sleeve).
Par 4-97
Page 4-69
