AC 43.13-1B CHG 1
9/27/01

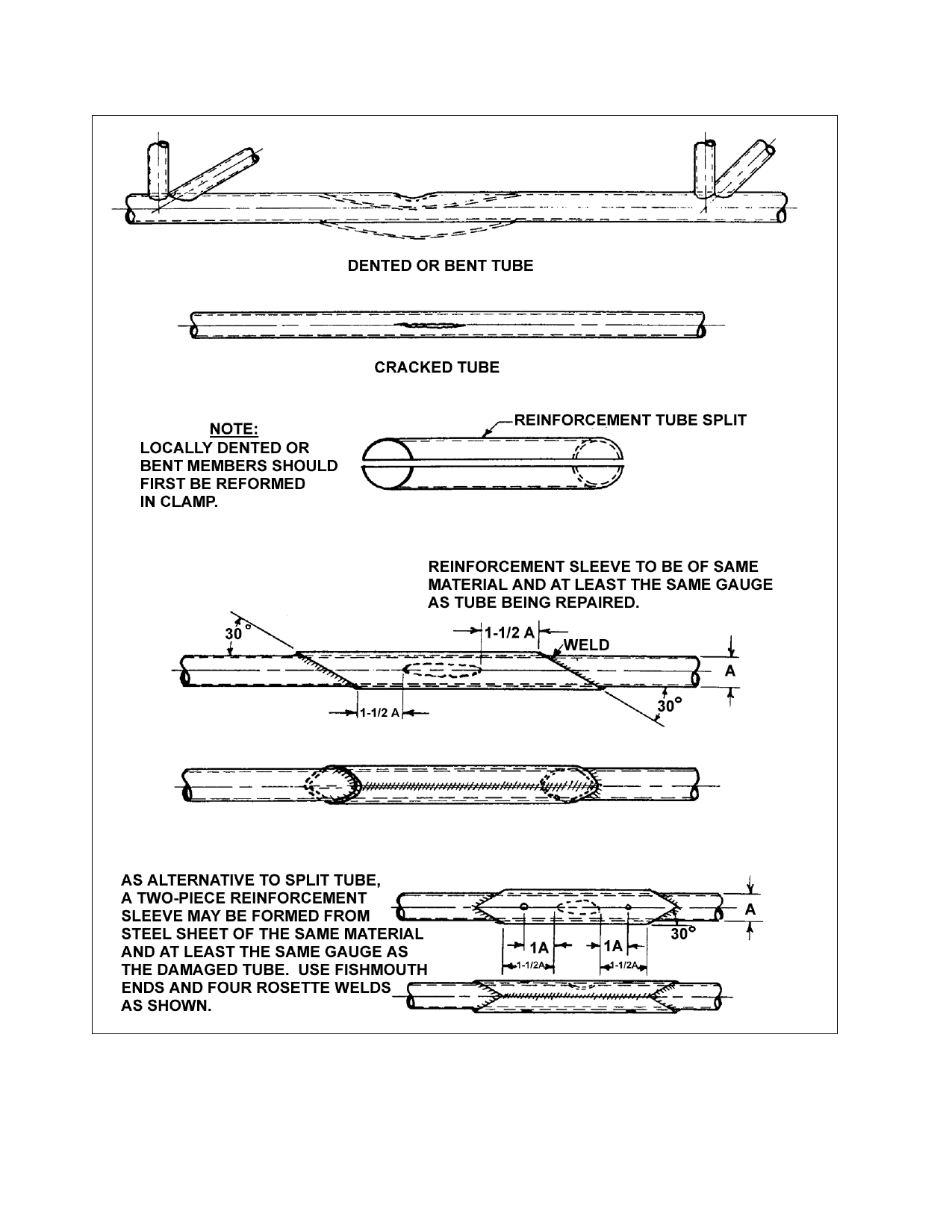

FIGURE 4-35. Members dented in a bay (repairs by welded sleeve).
Page 4-66
Par 4-95
