AC 43.13-1B
9/8/98

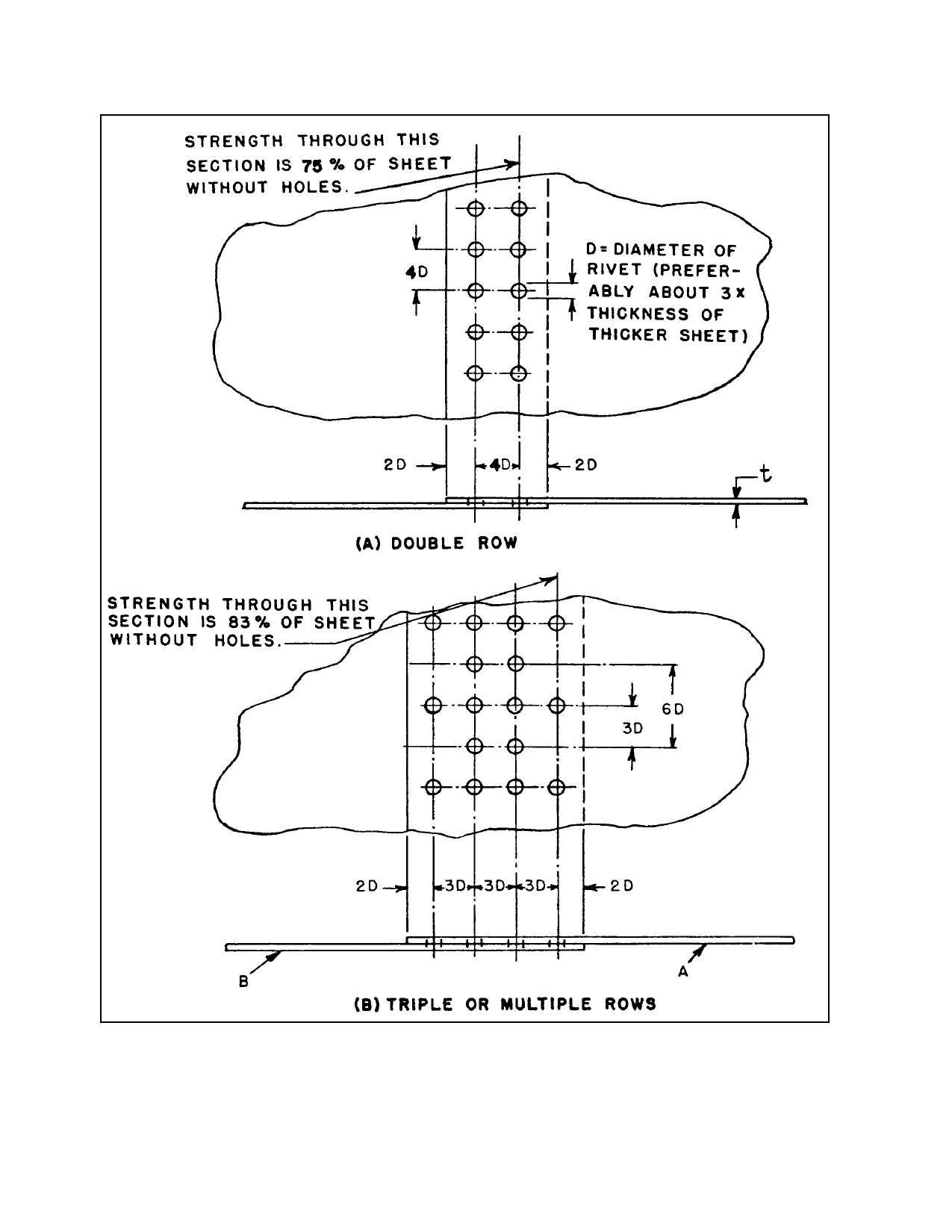

FIGURE 4-5. Rivet hole spacing and edge distance for single-lap sheet splices.
Page 4-20
Par 4-57
