AC 43.13-1B
9/8/98

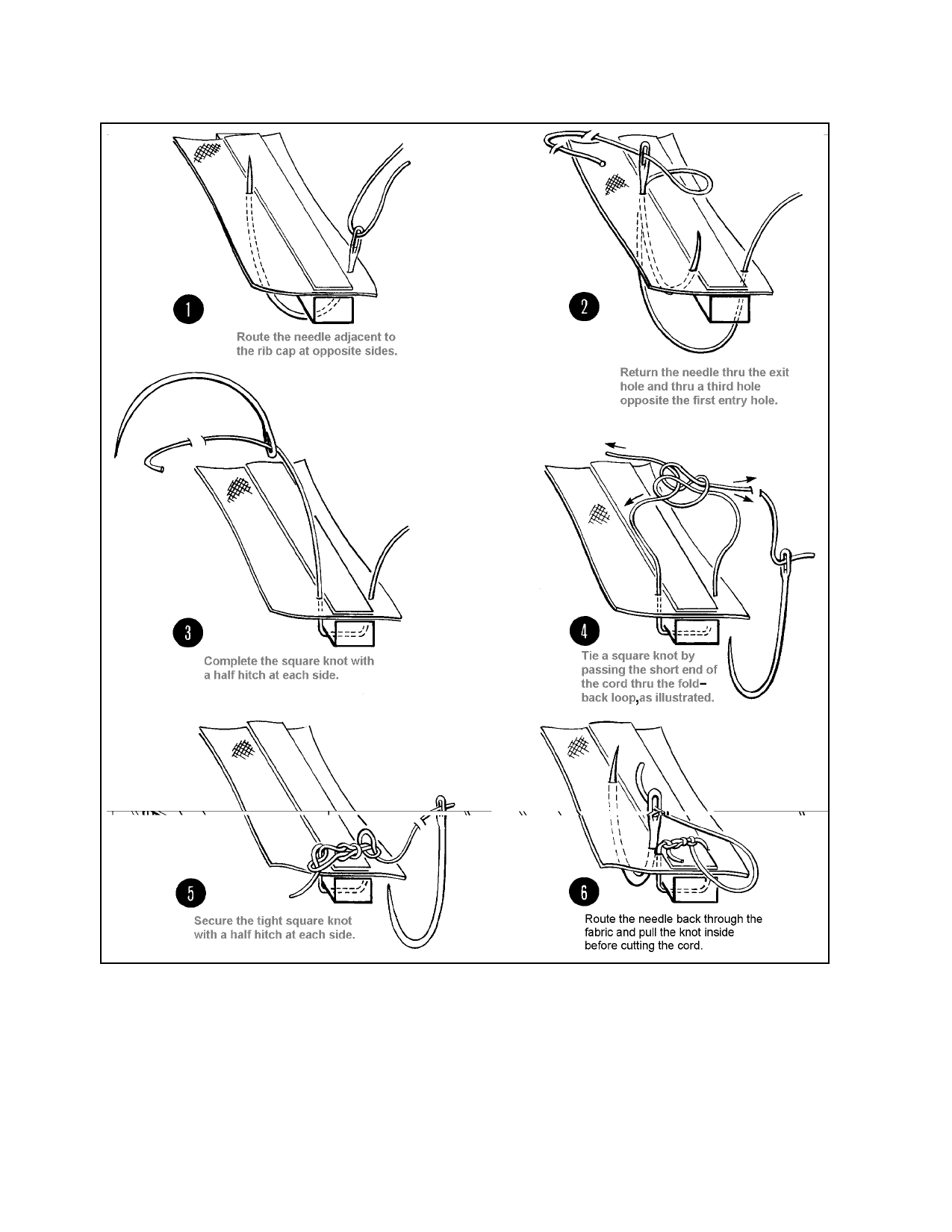

FIGURE 2-11. Blindstitch lacing - square knot secured with half hitches.
Page 2-20
Par 2-11
