FAA Advisory Circular 43.13-1B

Acceptable Methods, Techniques, and Practices

Aircraft Inspection and Repair

AC 43.13-1B | 11. Aircraft Electrical Systems | 11. Clamping | 11-147. Wire and Cable Clamps Inspection

Previous
Next
AC 43.13-1B CHG 1
9/27/01

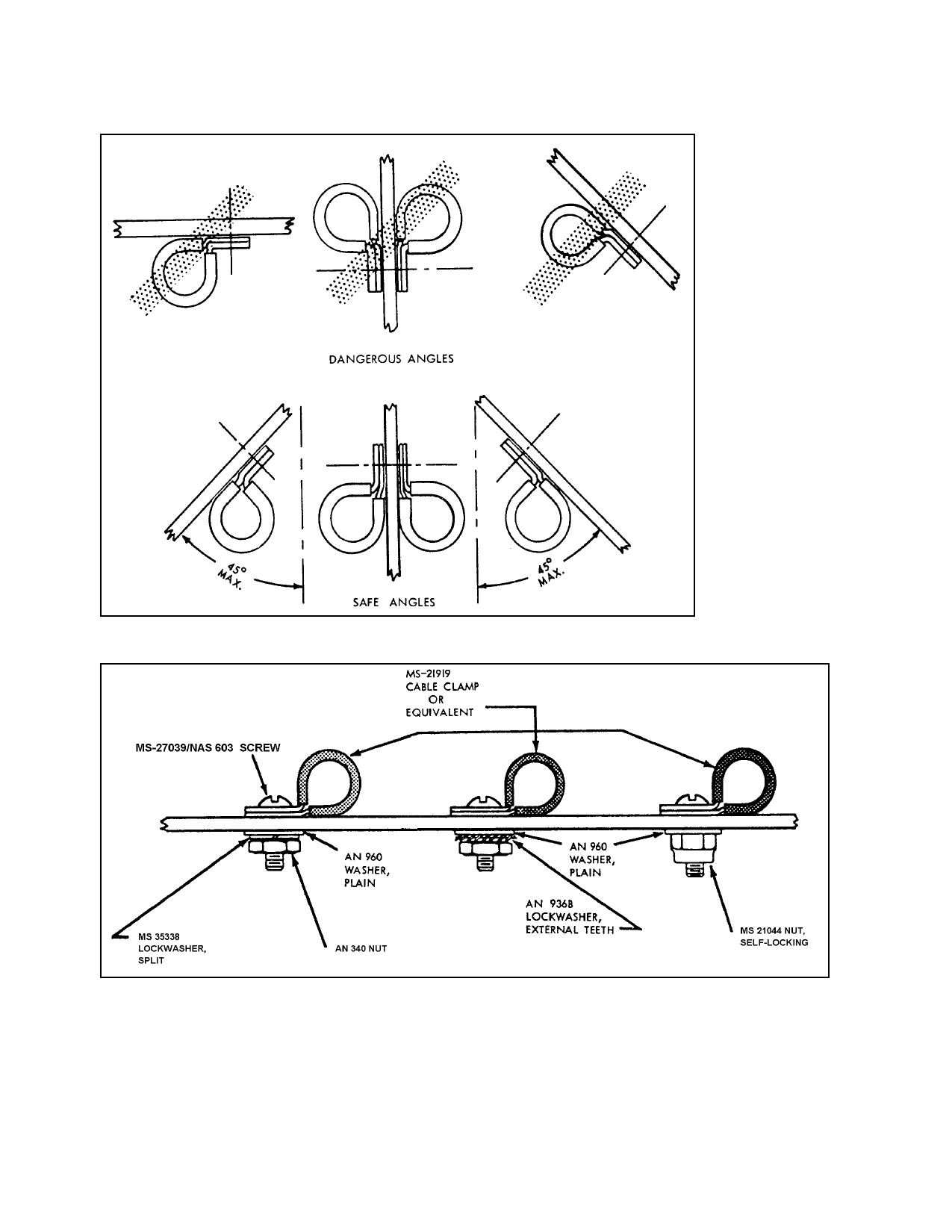

FIGURE 11-11. Safe angle for cable clamps.
FIGURE 11-12. Typical mounting hardware for MS-21919 cable clamps.
Page 11-58
Par 11-49
