AC 43.13-1B | 11. Aircraft Electrical Systems | 9. Environmental Protection and Inspection | 11-126. Flammable Fluids and Gases
AC 43.13-1B
directly to the fluid-carrying equipment. In-
stall clamps as shown in figure 11-10. These
clamps should not be used as a means of sup-
porting the wire bundle. Additional clamps
should be installed to support the wire bundle
and the clamps fastened to the same structure
used to support the fluid line(s) to prevent
relative motion.

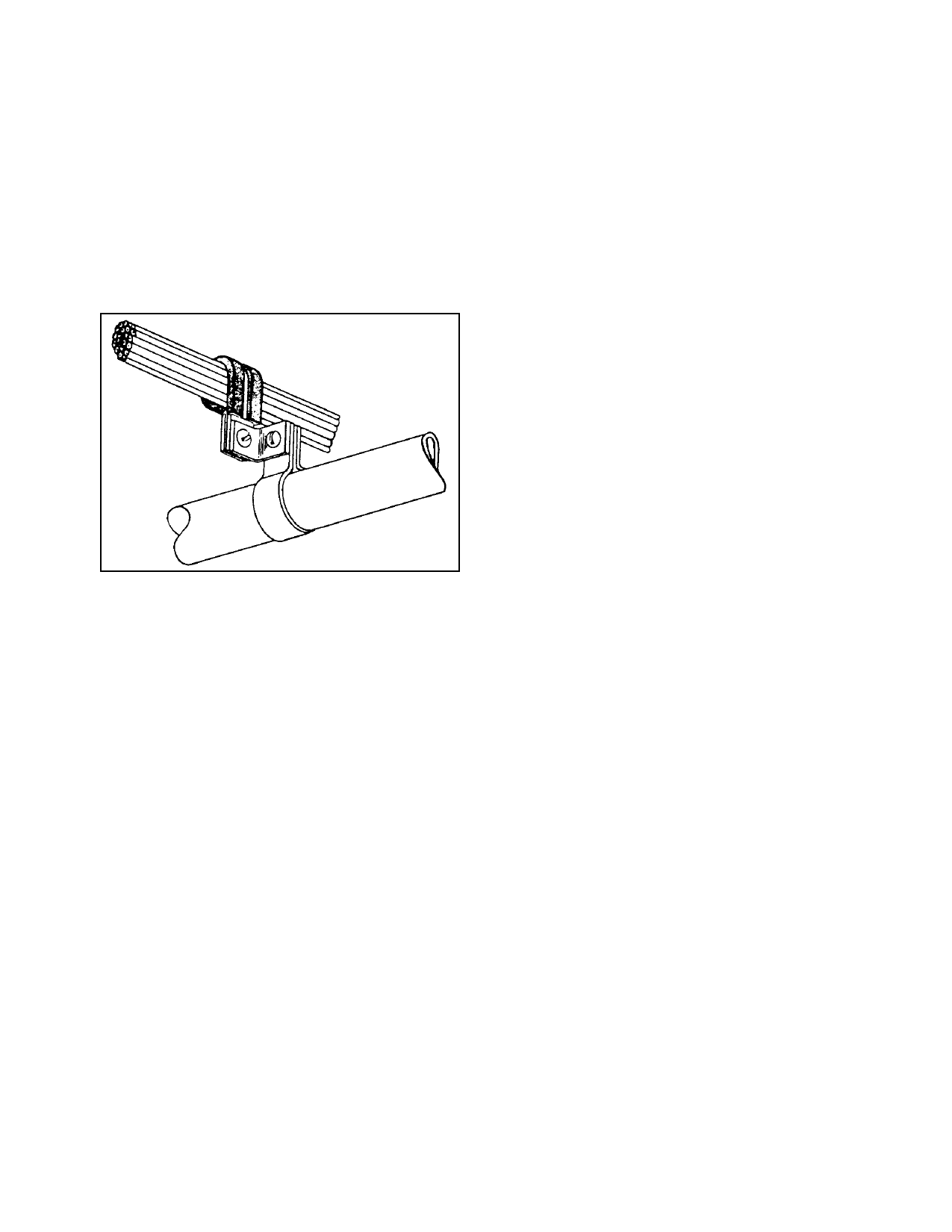

FIGURE 11-10. Separation of wires from plumbing lines.
11-127.11-134. [RESERVED.]
9/8/98
Page 11-54
Par 11-126
