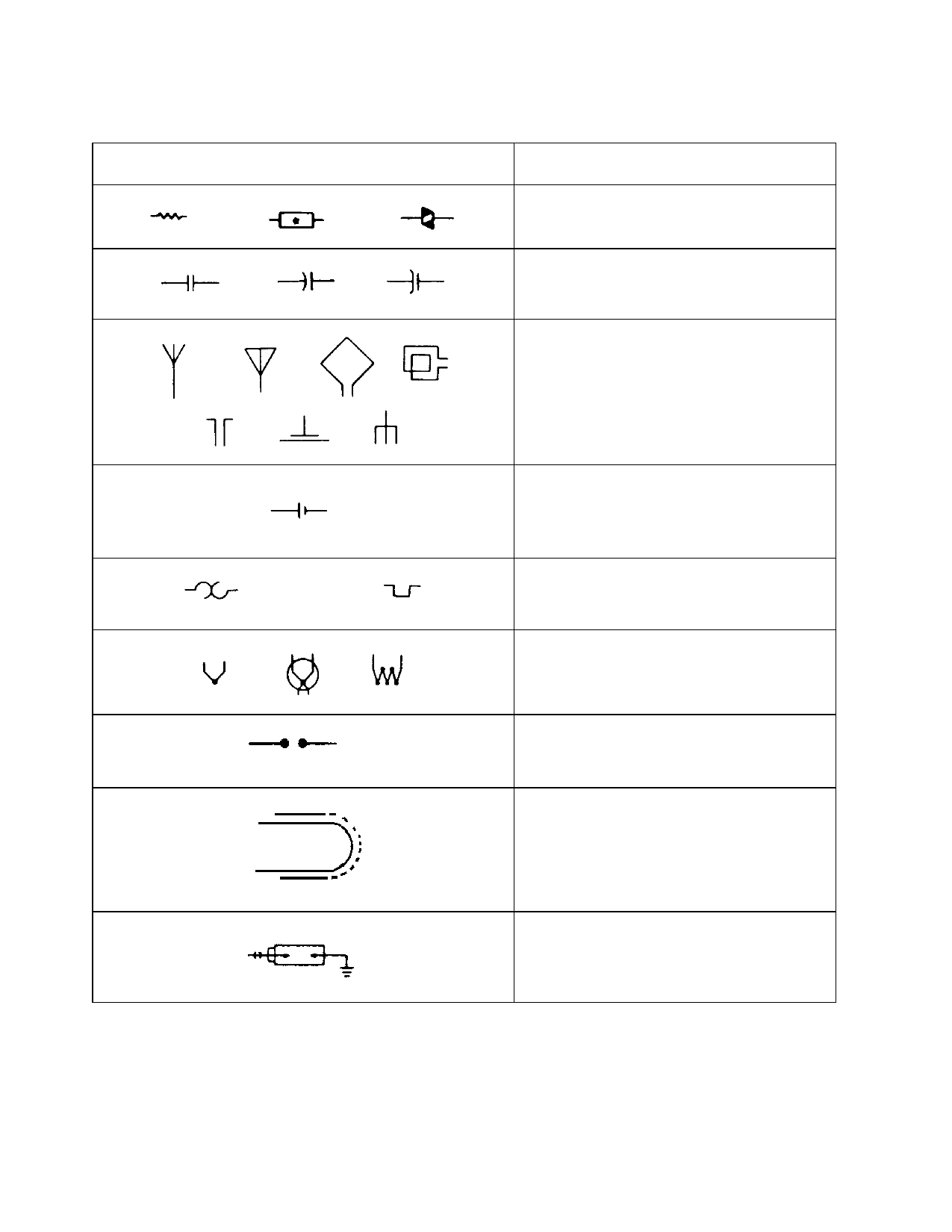

TABLE 11-27. Electronic/Electrical Symbols (continued).
Symbol
Meaning
Resistor
Capacitor
9/8/98
Antenna
Battery
Thermal Element Thermomechanical
Transducer
Thermocouple
Spark Gap Ignitor Gap
Continuous Loop Fire Detector (Tem-
perature Sensor)
Ignitor Plug
