FAA Advisory Circular 43.13-1B
Acceptable Methods, Techniques, and Practices
Aircraft Inspection and Repair
AC 43.13-1B | 10. Weight and Balance | 2. Weighing Procedures | 10-22. Installation of Ballast
9/8/98
AC 43.13-1B

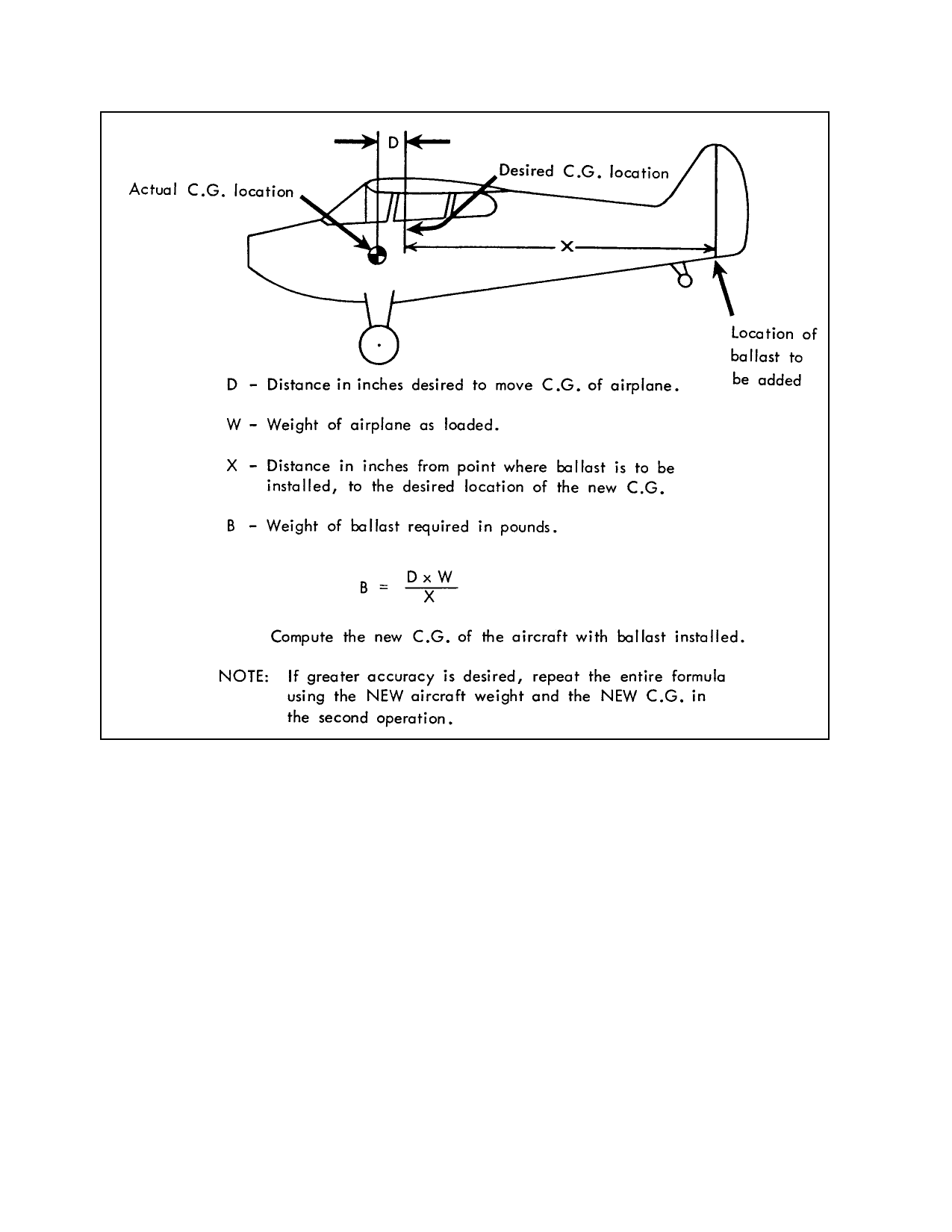

FIGURE 10-19. Permanent ballast computation formula.
10-23. LOADING SCHEDULE. The
loading schedule should be kept with the air
craft and form a part of the aircraft flight man
ual. It includes instructions on the proper load
distribution such as filling of fuel and oil
tanks, passenger seating, restrictions of pas
senger movement, and distribution of cargo.
acceptable and may be used in lieu of the in
formation in paragraph 10-18.
b. Compute a separate loading condi-
tion when the aircraft is to be loaded in other
than the specified conditions shown in the
loading schedule.
a. Other means of determining safe
loading conditions such as the use of a
graphical index and load adjuster are
10-24.10-34. [RESERVED.]
Par 10-22
Page 10-23
