AC 43.13-1B | 1. Wood Structure | 4. Repairs | 1-49. Repairs to Single Curvature Plywood Skin
9/8/98
AC 43.13-1B
1. AFTER INSERTED WEB HAS BEEN BONDED IN PLACE, BOND COVER STRIPS OVER ENTIRE LENGTH OF
WEB SPLICE JOINTS.
2. SECTIONAL SHAPE OF FILLER BLOCKS MUST CONFORM EXACTLY TO TAPER OF SPAR. THEY MUST
NOT BE TOO TIGHTLY FITTED, FOR WEDGING ACTION WILL LOOSEN EXISTING BONDS OF WEBS TO
FLANGES. IF TOO LOOSELY FITTED, CRUSHING OF WEB WILL OCCUR WHEN CLAMPING.
3. DIRECTION OF FACE GRAIN OF INSERTED WEB SECTION AND COVER STRIPS TO BE SAME AS
ORIGINAL WEB.

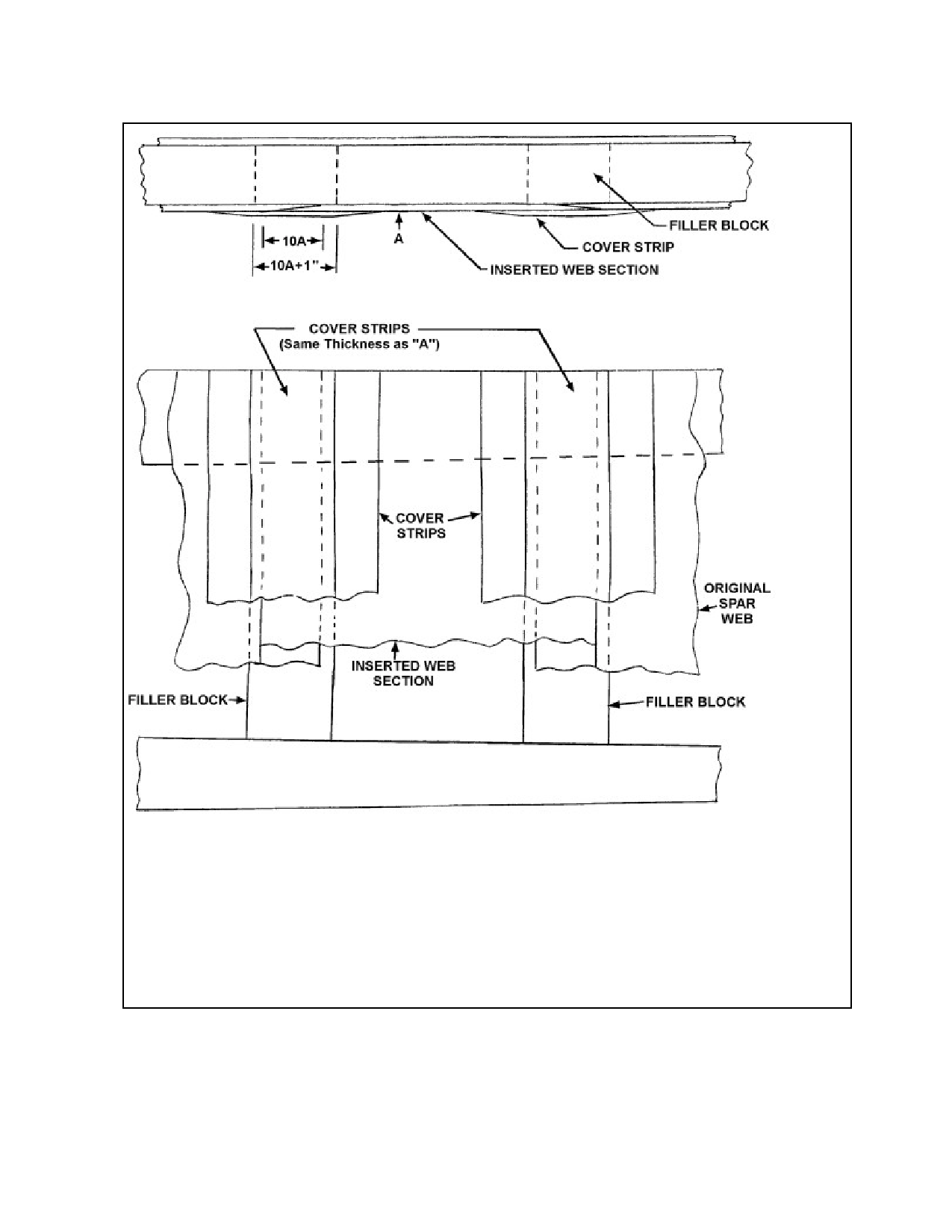

FIGURE 1-9. Method of splicing box spar webs.
Par 1-49
Page 1-21
